The caliber 330 [message #669] Sat, 15 June 2013 15:54 Go to next message
JackW is currently offline  JackW
Messages: 1931
Registered: May 2013
Location: Denver
Gruen Authority
Head Janitor
Site Admin

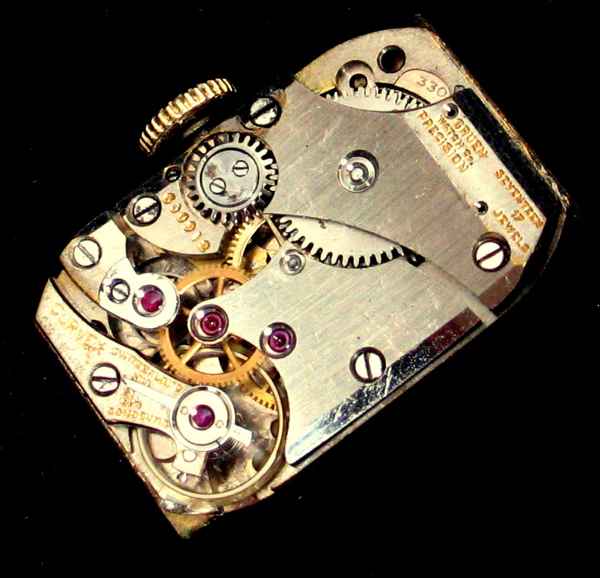

The caliber 330 is 17 jewels and is 7-3/4 x 11 ligne or 17.2mm x 24.81mm. It is the second Curvex movement that was produced by Gruen. This caliber is usually marked with the number next to the mainspring barrel on the exposed underside of the top plate.
Photo by ArtB.
index.php?t=getfile&id=346&private=0
  • Attachment: cal_330AB.jpg
    (Size: 39.63KB, Downloaded 782 times)


All I know is based on hard work & writing by others. I can only aspire to augment this body of knowledge. If I am wrong it is because of my own failings. -me

"If I have seen farther it is by standing on the shoulders of giants." - Newton

[Updated on: Mon, 17 June 2013 02:55]

Report message to a moderator

Re: The caliber 330 [message #1029 is a reply to message #669] Thu, 11 July 2013 11:55 Go to previous messageGo to next message
Thojil is currently offline  Thojil
Messages: 650
Registered: May 2013
Location: Concorès, France
Gruen Master
Interesting detail is that the 330 was initially produced with a single center bridge. Gruen changed to a split layout with separate escape wheel cock apparently in the fall of 1938 to improve serviceability (information I recall having from Cary).

index.php?t=getfile&id=466&private=0
Re: The caliber 330 [message #1032 is a reply to message #1029] Thu, 11 July 2013 15:17 Go to previous message
JackW is currently offline  JackW
Messages: 1931
Registered: May 2013
Location: Denver
Gruen Authority
Head Janitor
Site Admin
Thanks! I'd forgotten about this too.

All I know is based on hard work & writing by others. I can only aspire to augment this body of knowledge. If I am wrong it is because of my own failings. -me

"If I have seen farther it is by standing on the shoulders of giants." - Newton
