The caliber 98 [message #1094]

Thu, 18 July 2013 21:37

Thojil
Messages: 650
Registered: May 2013
Location: Concorès, France

Gruen Master

The caliber 98 is a 15 or 17-jewel movement and is 9-3/4 ligne or 21.99mm in diameter (1926 Standardized Parts, page 22). According to the later Material Catalog 539 two other variants exist, caliber 99 with 15-jewels but different setting gear and caliber 997 a 17-jewel variant of this movement. This later information shows caliber 98 only as a 15-jewel implying the 17-jewel variant changed to caliber 997 at some point. Production start was about 1915.

index.php?t=getfile&id=495&private=0

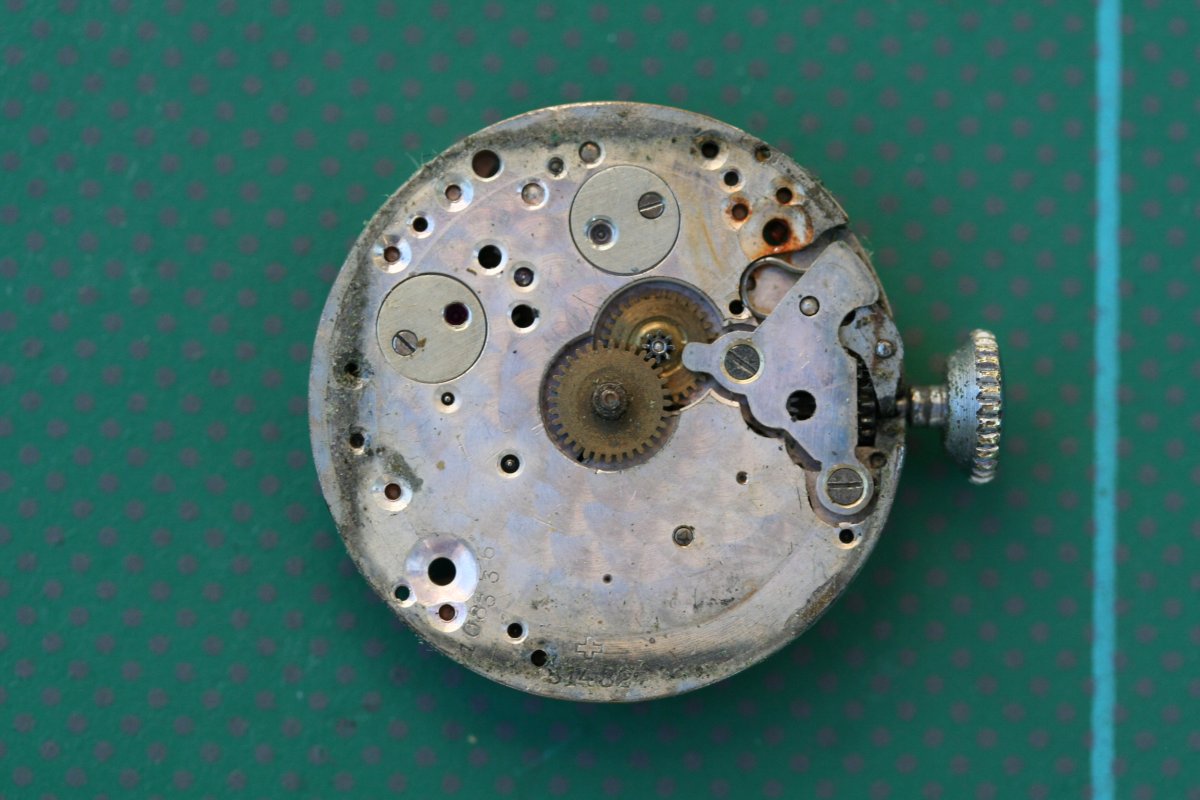

Attachment: 083b.jpg
(Size: 126.74KB, Downloaded 1753 times)

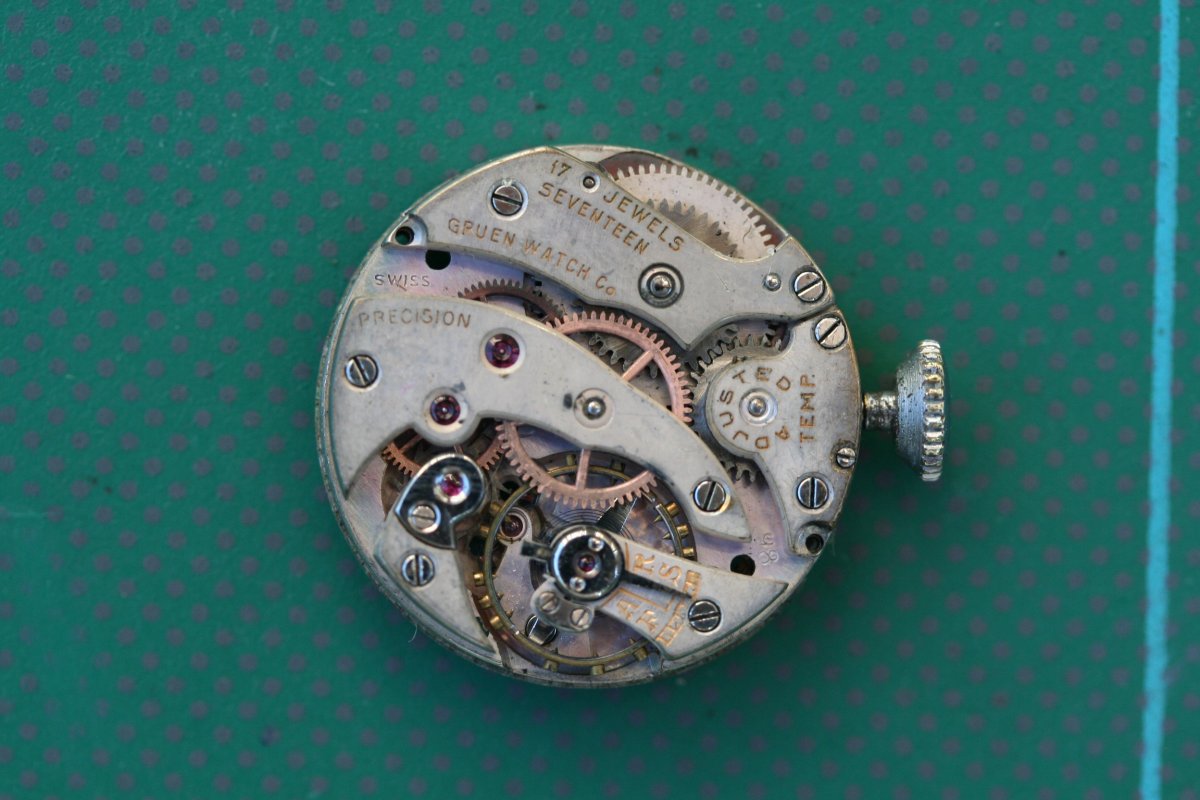

Attachment: 082b.jpg
(Size: 120.02KB, Downloaded 1704 times)
