Re: Caliber 740 (Premo, WSC, Guild) - 17J & 19J variants [message #12121 is a reply to message #12118]

Fri, 07 February 2020 16:49

Barney Green
Messages: 1747
Registered: February 2014
Location: Wolfsburg, Germany

Gruen Authority

Thanks for showing these, Dan!
I think Thojil has mentioned once that caliber 740 was manufactured by Lavina which I think is absolutely correct. Like a couple of models in the 7xx range...

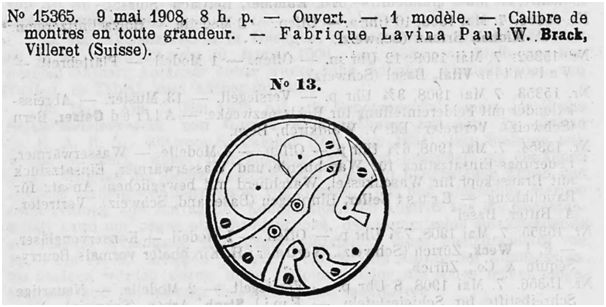

Caliber 740 is in my eyes based on this Lavina design from 1908 which has been available in different sizes:

/vgforum/index.php?t=getfile&id=6080&private=0

/vgforum/index.php?t=getfile&id=6080&private=0

The mentioned US Patent by Edward Staehli from 1904 shows that things does not exactly have to look like in the drawings, it is the principle which is worth the patent.

Barney

Attachment: Lavina 13.jpg
(Size: 36.11KB, Downloaded 741 times)
Attachment: US000000833489A_all_pages.pdf
(Size: 331.47KB, Downloaded 158 times)

Gruen, Gruen, Gruen ist alles was ich habe... Gruen, Gruen, Gruen is all I have...(German folklore song)

[Updated on: Fri, 07 February 2020 16:50]
