Re: Caliber 650 (Guild) [message #12140 is a reply to message #12139]

Tue, 11 February 2020 04:53

Case
Messages: 1178
Registered: May 2019
Location: Cincinnati

Gruen Authority

Here’s a later version, circa 1922. 3 adjustments, sn already up to 204458. Still pre-1922 tariff markings. Now a gold color dial. This is where Factory R comes into the light. (edit: this is a Record movement; TBD if the Singer dial is indicative of any Russbach relationship)

-Dial back stamped “Singer 107” and etched “650”, same stamps and writing style as Factory R-stamped 641s I shared
-Font & size for caliber stamp between bridges is same as 641

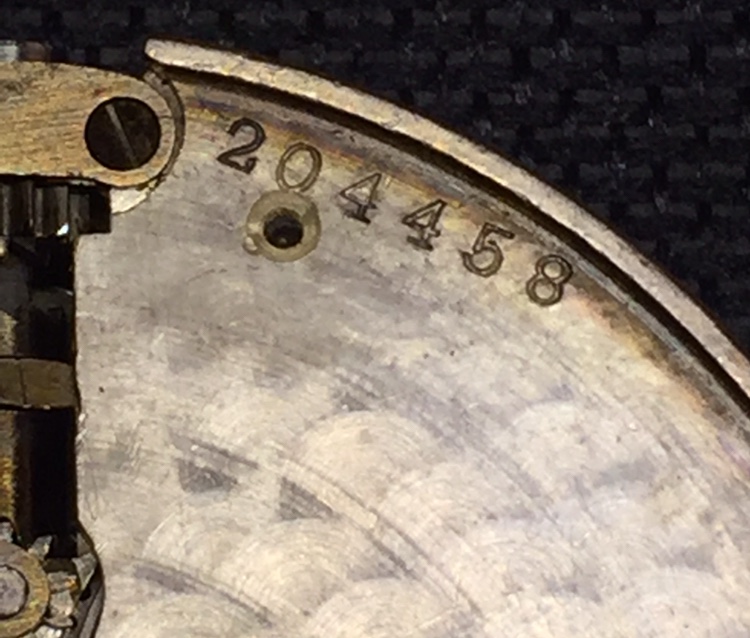

-SN font and size on front plate is identical to the early 641s (you’ll see they had to hold the stamp sideways on the 641 to fit 5 digits, leaving the “2” to the side then off completely)

/vgforum/index.php?t=getfile&id=6094&private=0

/vgforum/index.php?t=getfile&id=6094&private=0

/vgforum/index.php?t=getfile&id=6095&private=0

/vgforum/index.php?t=getfile&id=6096&private=0

/vgforum/index.php?t=getfile&id=6097&private=0

Attachment: 6828119A-D4B4-4EB9-A979-39AC668009C0.jpeg
(Size: 177.74KB, Downloaded 1213 times)
Attachment: 7A98FE91-382D-4A0B-9E70-6464D8BA7B91.jpeg
(Size: 232.47KB, Downloaded 1183 times)
Attachment: 51390AC2-CF37-4477-B688-9240D41E6FB5.jpeg
(Size: 209.19KB, Downloaded 1196 times)
Attachment: F1BC035B-A71F-4E4E-88C9-10ACF8783E8F.jpeg
(Size: 144.89KB, Downloaded 1183 times)

My two caveats:
1) I'm wrong many times a day --just ask my wife!
2) Always seeking to learn more

[Updated on: Tue, 02 June 2020 13:14]
